Plasterboard Access Panels with Aluminium Frame Standard

Access panels provide easy access to inspection openings in walls and ceilings, and cavities with gas, water and electricity meters or in-house fire hydrants, etc.

Produced in large sizes, they are also used for rooms with a fairly large wiring stations such as central heating distributors or ceiling storage.

They feature spring-loaded latches, providing a surface without handles or grips.

To open the door, press on the longer edge of the part to be opened.

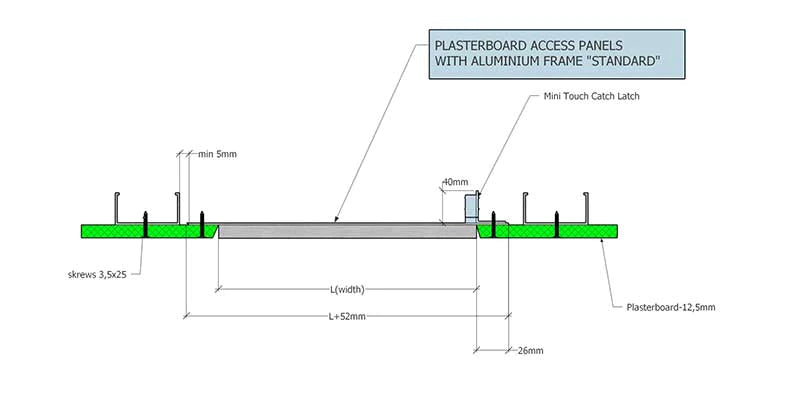

• Make a hole in the drywall . sash size + 5mm.
• Place the valve in the hole and then align.
• Fix the inspection hatch frame with screws. The number of screws used must be adapted to the size of the valve.
• Fill the gaps in the connection of the leaves with drywall and level the surface in the area of the screws with building putty.
• After the putty has dried, cover the surface with paint.

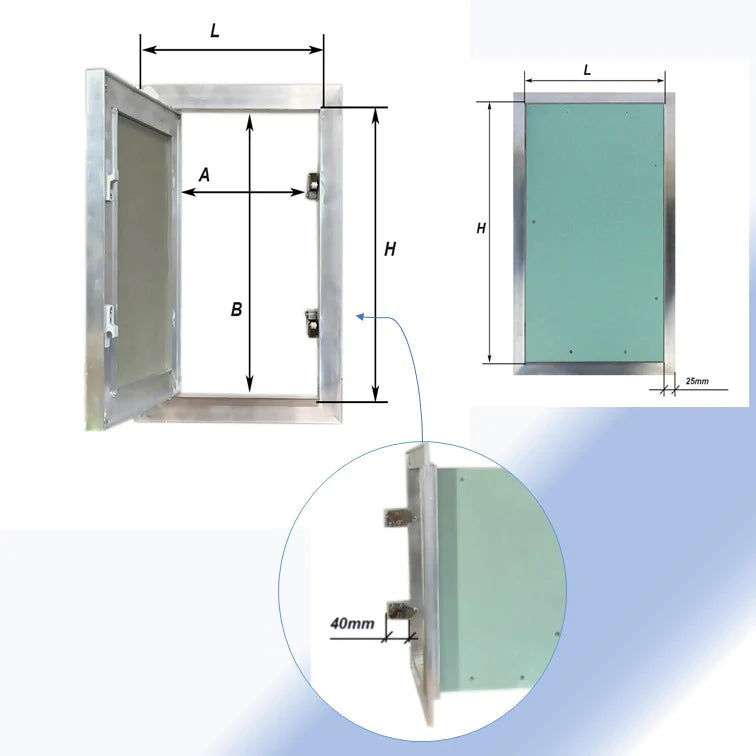

• NOTE. Model dimensions are cutout size/hole size+5mm.

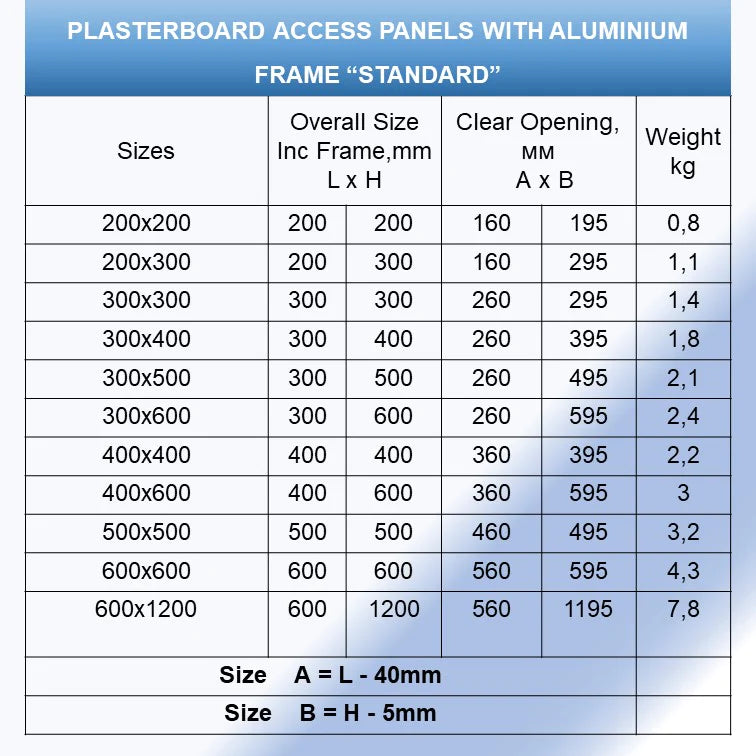

size info
